MIL-DTL-18295F
SEE NOTE 3
H
D
DOVETAIL
V
T
C
R
J
A
PIN
N
B
Notes:
1. All anchor joining links must fit the common stud link and the ground ring of the same
nominal size.
2. For dovetail and pin dimension see figure 5b.
3. Draft angle between 3 degrees and 10 degrees.

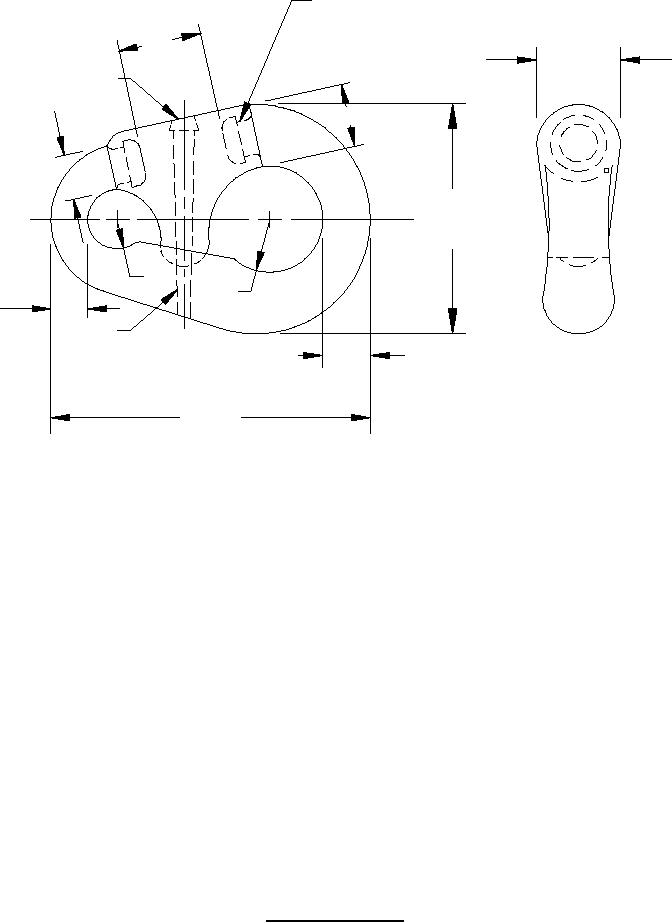

FIGURE 3. Anchor joining link - Continued.
30
