MIL-DTL-18295F
1 OR 2
5 OR 6
3 OR 4
FLEET MOORING
CHAIN REF
MFG, FM3,
CHAIN SIZE
A
RANGE
(SEE
FIGURE 20)
R 1.00
B
4 PL
C
2 PL
D
2 PL
SINKER CHAIN
OR PAD EYE REF
All dimensions in inches (mm).
Dash
Sinker chain
Dimension
Dimension
Radius
Diameter
A ± 0.12 (3.05)
B ± 0.12 (3.05)
C ± 0.12 (3.05)
D ± 0.06 (1.52)
no.
or pad eye diameter
reference
-1
1.75 to 2.00
12.06 (306.32)
3.03 (76.96)
2.56 (65.02)
1.88 (47.75)
(44.45 to 50.80)
-2
2.25 to 4.00
22.06 (560.32)
4.03 (102.36)
3.56 (90.42)
2.38 (60.45)
(57.15 to 101.60)
2
-
6
Grade DH
Nut, heavy, hex, 2.250-8UN-2B
ASTM A563
Steel
2
5
Grade DH
Nut, heavy, hex, 1.750-8UN-2B
ASTM A563
Steel
-
2
4
Grade BD
Bolt, hex hd, 2.250-8UN-2A x 9.25L
ASTM A354
Steel
-
-
2
3
Grade BD
Bolt, hex hd, 1.750-8UN-2A x 6.25L
ASTM A354
Steel
2
2
Plate, 1.25 Stk
ASTM A36
Steel
-
2
1
Plate, 1.00 Stk
ASTM A36
Steel
-
Qty.
Qty.
Find
Part or
Nomenclature
reqd.
reqd.
no.
identifying no.
or description
Specification
Material
-2
-1
Parts list

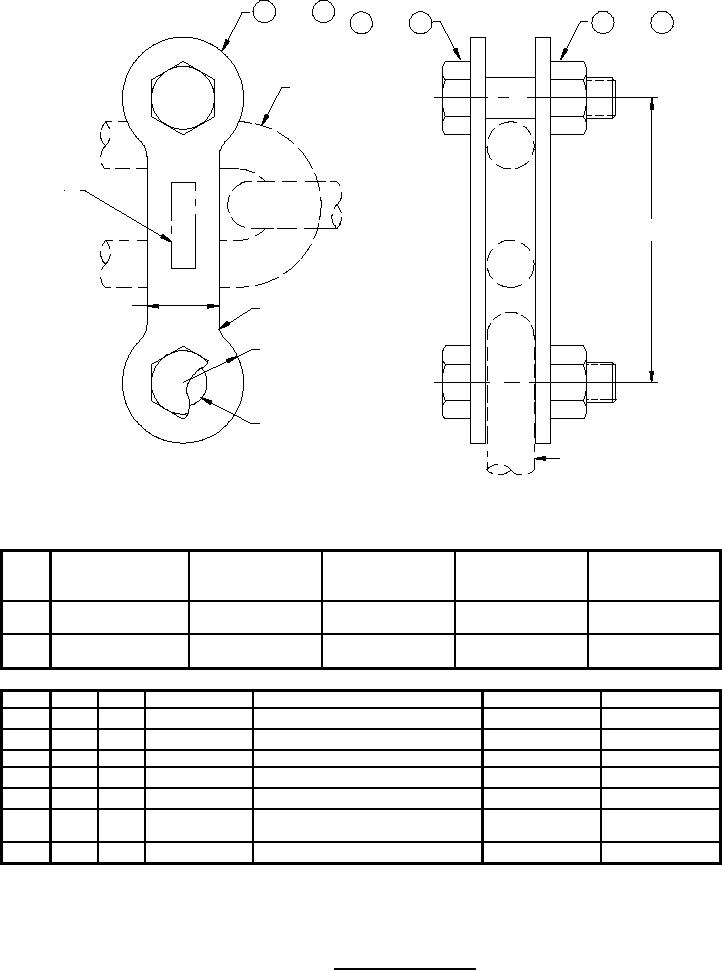

FIGURE 7. Plate sinker shackle.
