MIL-DTL-18295F
R=2.07
R 7.39
R 3.25
HOLE 1
12.00
R 4.00
37.84 HOLE 3
23.55
10.20
HOLE 2
2 PL
R
2 PL
R 2.75
4 PL
6.90
R 6.90
2 PL
4.14
7.50
2 PL
15.00
MFG, FM3, CONTRACT DATE,
CHAIN SIZE RANGE
Notes:
1. Hole 1 shall be compatible with the small end of 3.50-inch (88.90 mm) and 4.00-inch
(101.60 mm) nominal chain size anchor joining links and shall satisfy the proof and break load
(101.61 requirements of 4.00-inch (101.60 mm) chain.
2. Holes 2 and 3 shall be compatible with the large end of 2.25-inch (57.15 mm), 2.50-inch
(63.50) mm), and 2.75-inch (69.80 mm) anchor joining links and shall satisfy the proof and break
load requirements of 2.75-inch (69.80 mm) chain.
3. All dimensions are in inches (mm).
4. Tolerances:
Holes 1, 2, 3 = + dimension times 0.20-in. (5.10 mm), - 0.00 (0.00 mm).
All other places = + dimension times 0.30-in. (7.62 mm), - 0.00 (0.00 mm).

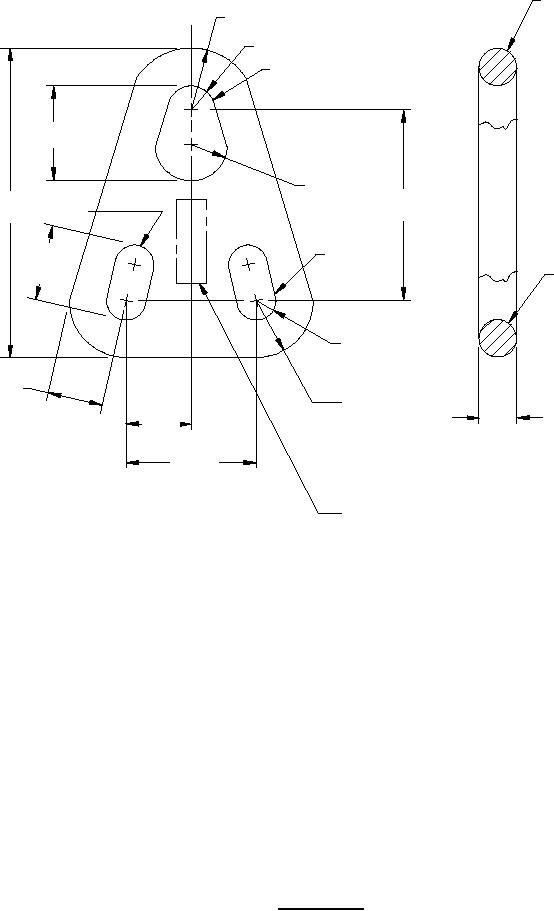

FIGURE 6. Spider plate.
35
