MIL-DTL-18295F
W
R
P
L
D
MFG, FM3
CHAIN SIZE RANGE
(SEE FIGURE 20)
B
Notes:
1. Eye for pin P = (1.048) (26.62 mm)P, location clearance fit. Split key pin diameter: chain size
1.375-through 2.50-in. = 0.375-in., (34.9 through 63 mm = 9.52 mm),
3.00 through 4.00 in. = 0.50 in.
(76 through 101.6 mm = 12.7 mm). Split key length: (1.50-in.) (38 mm)P.
2. Nominal sizes are the manufacturer's nomenclature and do not correspond to the nominal chain size;
specific shackles will not necessarily have the same material and strength characteristics as chain of
the same nominal size. Buoy shackles shall include bolt, nut, and cotter pin.

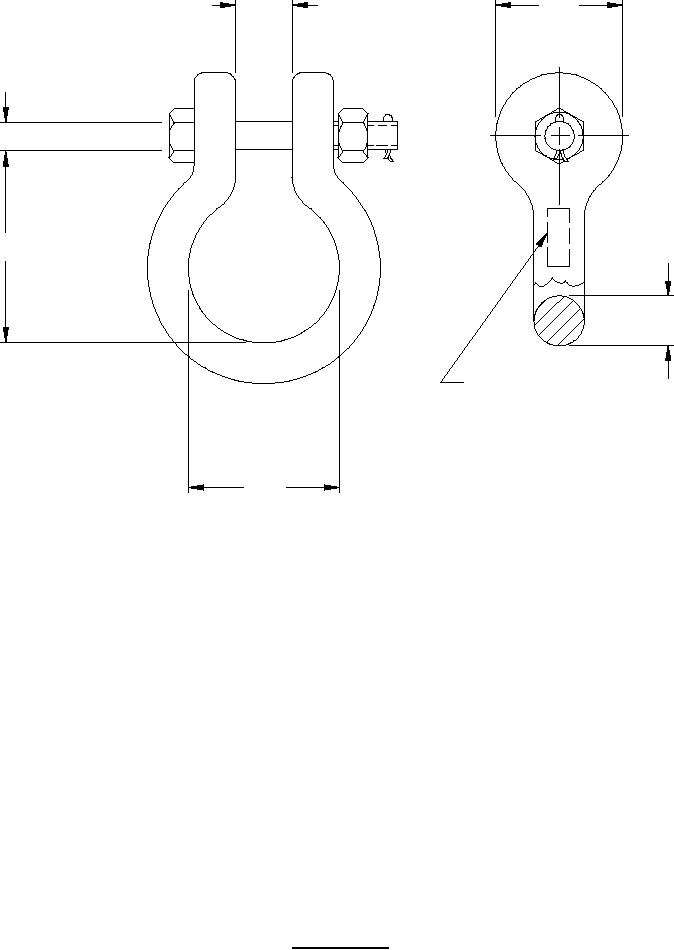

FIGURE 12. Buoy shackle - Continued.
42
