MIL-DTL-18295F
CHAIN END
D
P
A
X MX
F
MAIN PIN
H
MFG. DATE OF
J
CONTRACT, FM3,
CHAIN SIZE RANGE,
WASHERS
SERIAL NUMBER
DOVETAIL
K
L
4 PLACES
G
MAIN PIN
Y
N
Y
E
C
ANCHOR END
Notes:
1. Eye for A & E pins: (1.048 in.) (26.62 mm)A, (1.048 in.) (26.62 mm)E.
2. F & G radii from the outer edge of dovetail to the outer edge of pin on opposite end.
3. Calculate dimensions by multiplying nominal chain size by the indicated factor (d = nominal
chain size).
4. Dimensions are minimum, calculated as follows:
Dimension
Factor
Dimension
Factor
A
1.4d
K
8.65d
C
5d
L
1.9d
D
3.8d
M
1.4d
E
1.6d
N
2.2d
F
0.8d + A/2
P
4d
G
1.05d + E/2
X
1.3d
H
5.15d
Y
1.4d
J
1.6d
5. Dimensions are specified on Figure 5a.
6. Maximum dimensions shall permit mating of components and allow for free movement
(see 3.3.7).

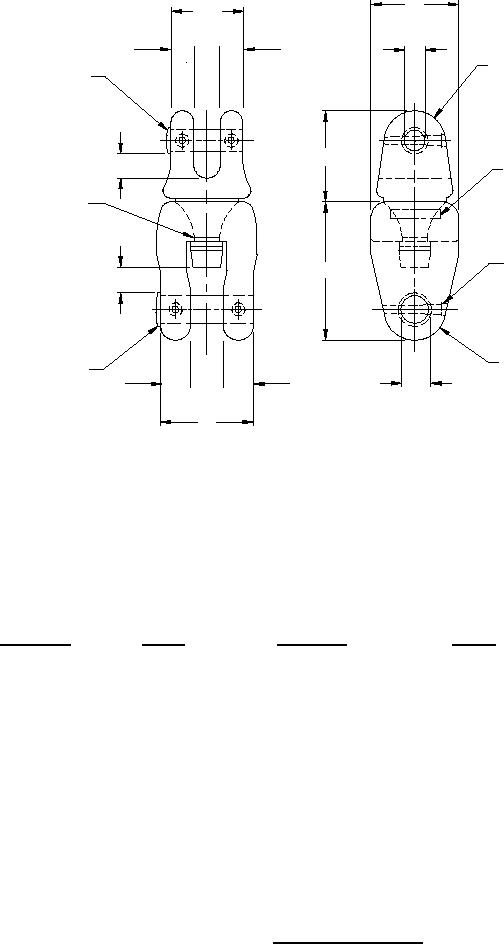

FIGURE 5. Swivel shackle detail.
32
