MIL-DTL-18295F
90 °
A
B
C
E
(Stud weldment opposite side of flash weld)
STUD WELDMENT
Dimension
Nominal
Tolerance
designation
dimension
Minus
Plus
A
0 in.
4.00 in. 101.60 mm)
4.00 in. (101.60 mm)
B
0.10 (2.54 mm)d
0.10 in.(2.54 mm)d
C
0.20 (5.10 mm)d
0.20 in.(5.10 mm)d
E
0.09 (2.29 mm)d
0.01 in.(0.25 mm)d
d = Nominal diameter of barstock

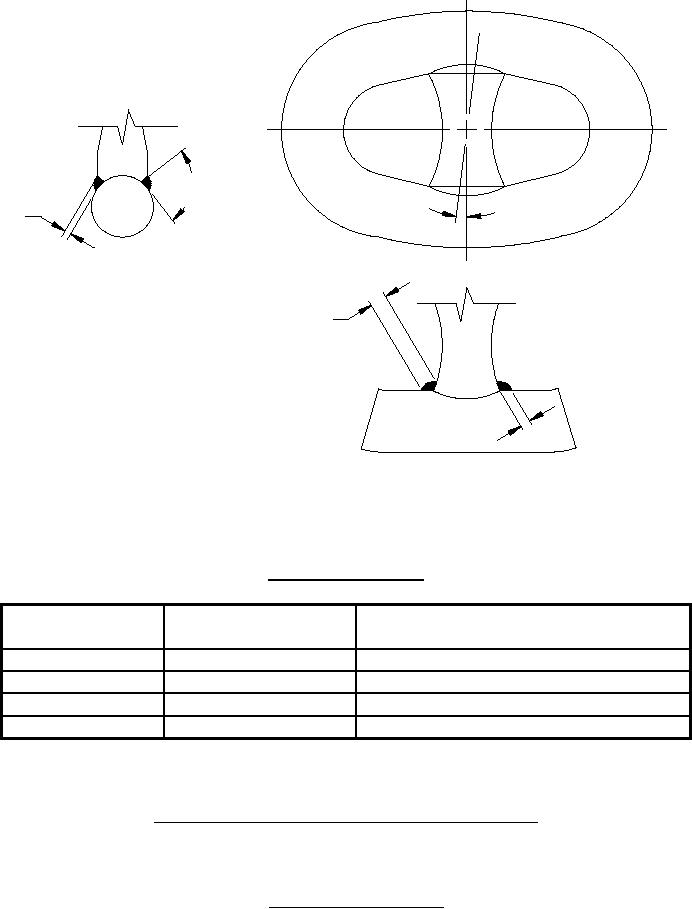

WELDMENT DIMENSIONS AND TOLERANCES
FIGURE 1a-2. Common stud link chain - Continued.
