MIL-DTL-2710 Links, Chain, Detachable, Regular And Pear-ShapedThis specification covers regular and pear-shaped detachable links for connecting shots of anchor chain, for connecting the anchor to the outboard swivel shot, and for connecting other chain appendages as necessary.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16 - 17 - 18 - 19 - 20 - 21 - 22 - 23 - 24 - 25


MIL-DTL-2710C
NOTE:
1. Groove in taper pin, holes and recess in coupling plates, and hairpin are furnished only for links used
in outboard swivel shots.

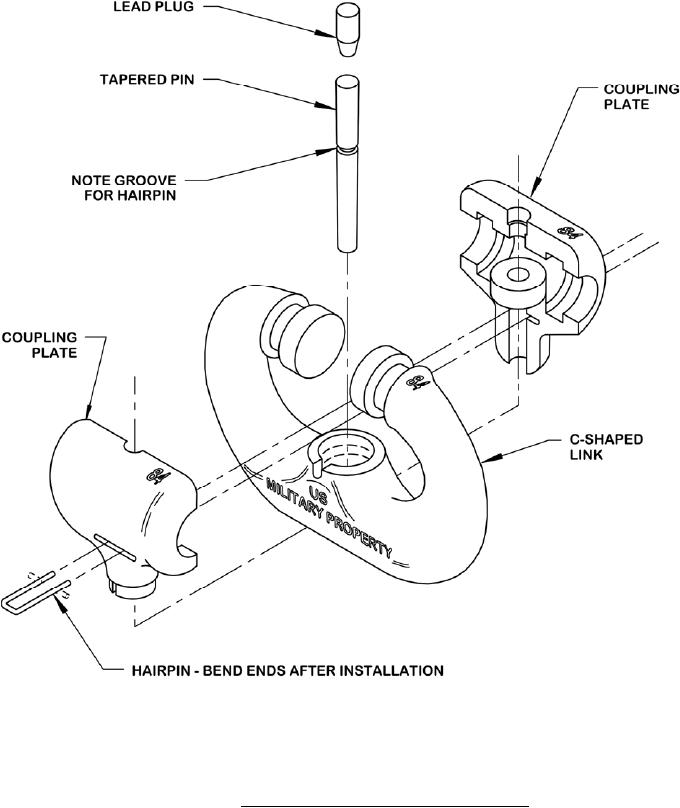

FIGURE 2. C-shaped detachable link with taper pin.
20
