MIL-DTL-83140B
NOTE:
1. All dimensions are in inches.
2. Reciprocating hydraulic, pneumatic, or electrical actuators, or other fittings, may be used in lieu of the
oscillating drum shown.

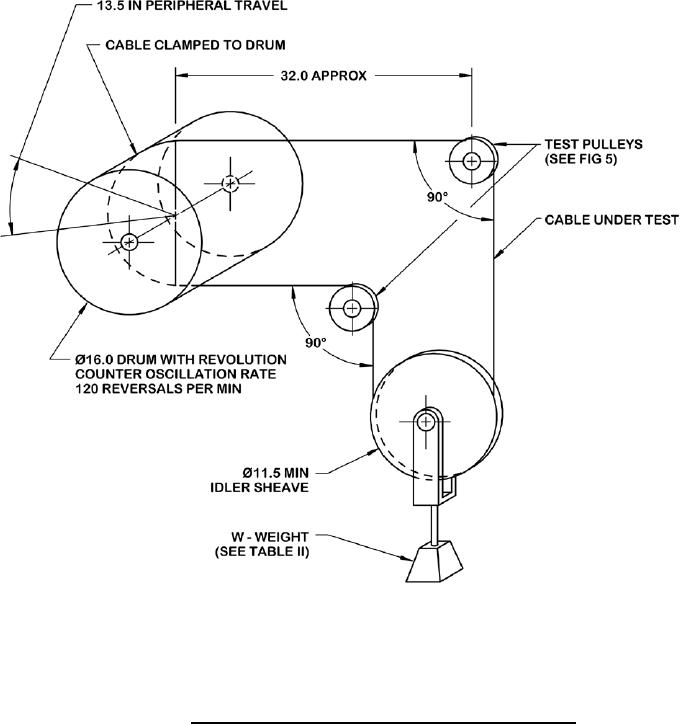

FIGURE 3. Wire rope endurance testing machine (diagrammatic).
14
