RR-C-271F
TABLE XX. Type VII, class 2, eye and eye swivels.
Trade size (nom) (inch) |
Length (L) (min) (inch) |
Width (W) (nom) (inches) |
Weight per 100 (approx) (pounds) |
Working load limit (pounds) |
Proof load (min) (pounds) |
Breaking load (min) (pounds) |
1/4 5/16 3/8 1/2 5/8 3/4 7/8 1 1-1/8 1-1/4 1-1/2 |
2.875 3.5 4.25 5.438 6.562 7.188 8.375 9.625 10.375 11.125 16.688 |
0.75 1 1.25 1.5 1.75 2 2.25 2.5 2.75 3.125 4 |
17.5 32.5 63 132 250 375 600 900 1,246 1,637 4,906 |
800 1,200 2,200 3,500 5,200 7,100 9,200 11,600 15,000 18,000 45,000 |
1,600 2,400 4,400 7,000 10,400 14,200 18,400 23,200 30,000 36,000 90,000 |
4,000 6,000 11,000 17,500 26,000 35,500 46,000 56,200 75,000 90,000 225,000 |
3.4.6.4 Class 3, jaw and eye swivels. The jaw and eye swivels shall be similar to figure 26, and shall be in accordance with the dimensions and physical requirements as shown in table XXI.

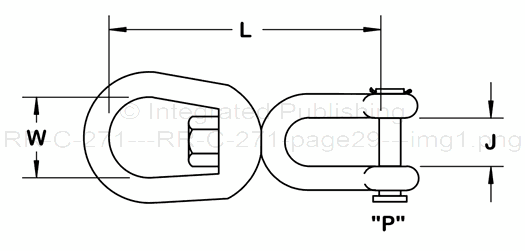

FIGURE 26. Type VII, class 3, jaw and eye swivel.
29
